Continuous coating systems type «KTF-S»
Continuous doctor knife coating with subsequent drying are the basic functions of the «KTF-S». The continuous coating system type «KTF-S» is used where the required sample length makes economic use of a large machine impossible.

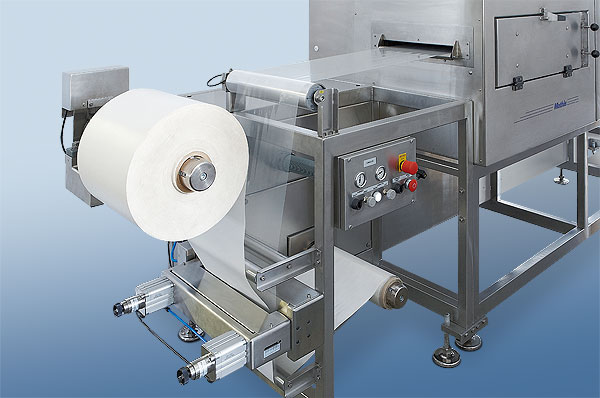

| Continuous coating systems type «KTF-S» |
Options
 | Infrared pre-dryer |
| Double field dryer for different treatment temperatures |
| Infrared radiation pyrometer for contactless measurement of the surface temperature of the material sample |
| Exhaust air fan |
| Laminating device |
| Hot melt coating |
| Special material holder for use as a hot-air dryer in a discontinuous process without doctor knife coating |
Technical data
| Type «KTF-S» 350 | Type «KTF-S» 500 | |
| Working width | 300 mm | 450 mm |
| Web speed | 0.1 – 2 m/min | 0.1 – 2 m/min |
| Dwell time | 20 – 420 s | 20 – 420 s |
| Circulation air speed | up to 6 m/s | up to 6 m/s |
| Circulation air capacity | up to 1000 m³/h | up to 1000 m³/h |
| Temperature range | up to 250°C | up to 250°C |
| Nozzle field length | 800 mm | 800 mm |
| Heating capacity | 9 kW | 13.5 kW |
| Exhaust air capacity | up to 400 m³/h | up to 400 m³/h |
| Winding diameter | 500 mm max. | 500 mm max. |
| Dimensions W x D x H | ~4120 x 950 x 1765 mm | ~4120 x 1100 x 1765 mm |
